Glass loading

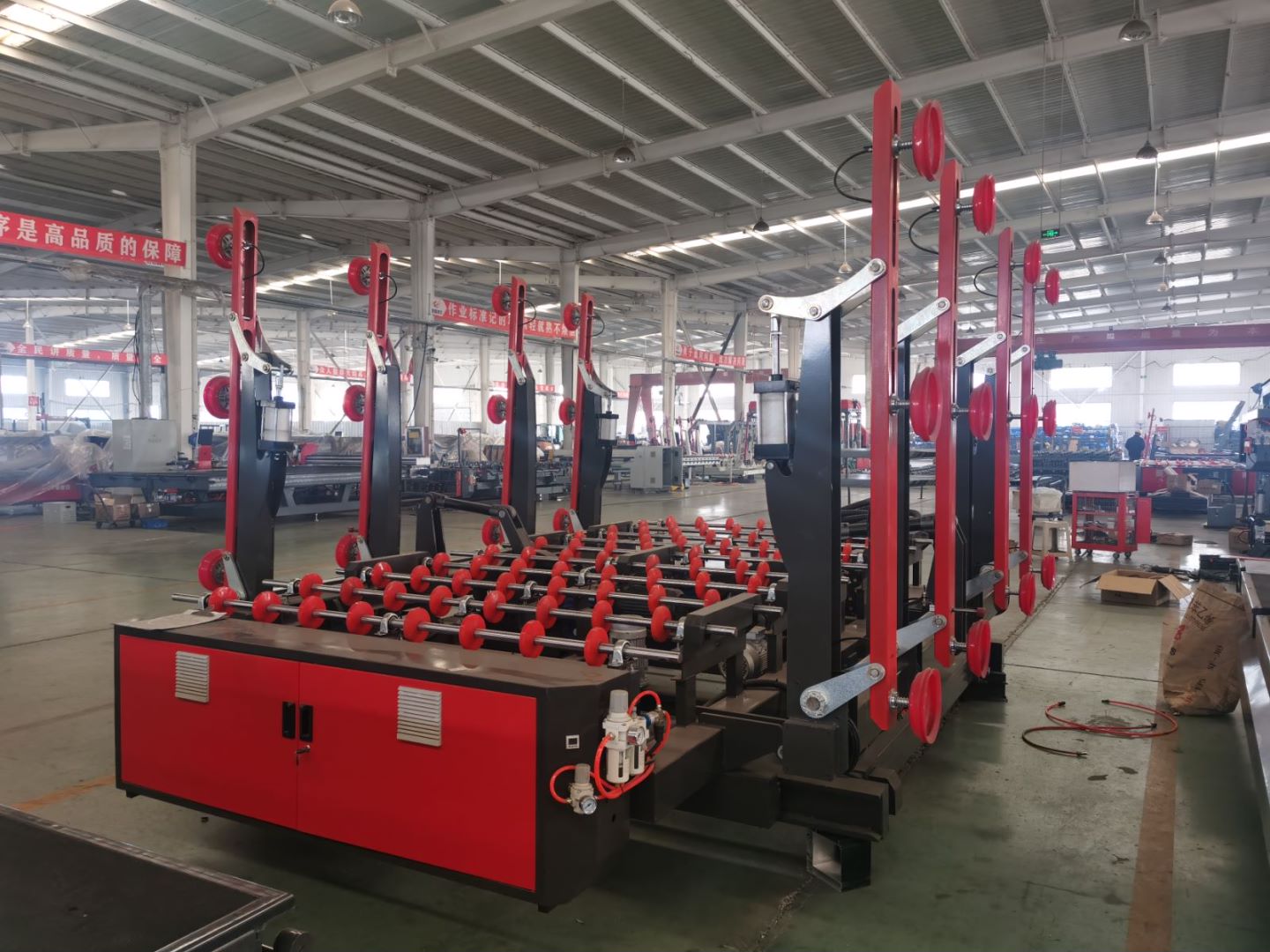

Automatic glass loading with two station or more and transmission.Glass cutting
Automatic positioning, optimization and cutting.Glass breaking

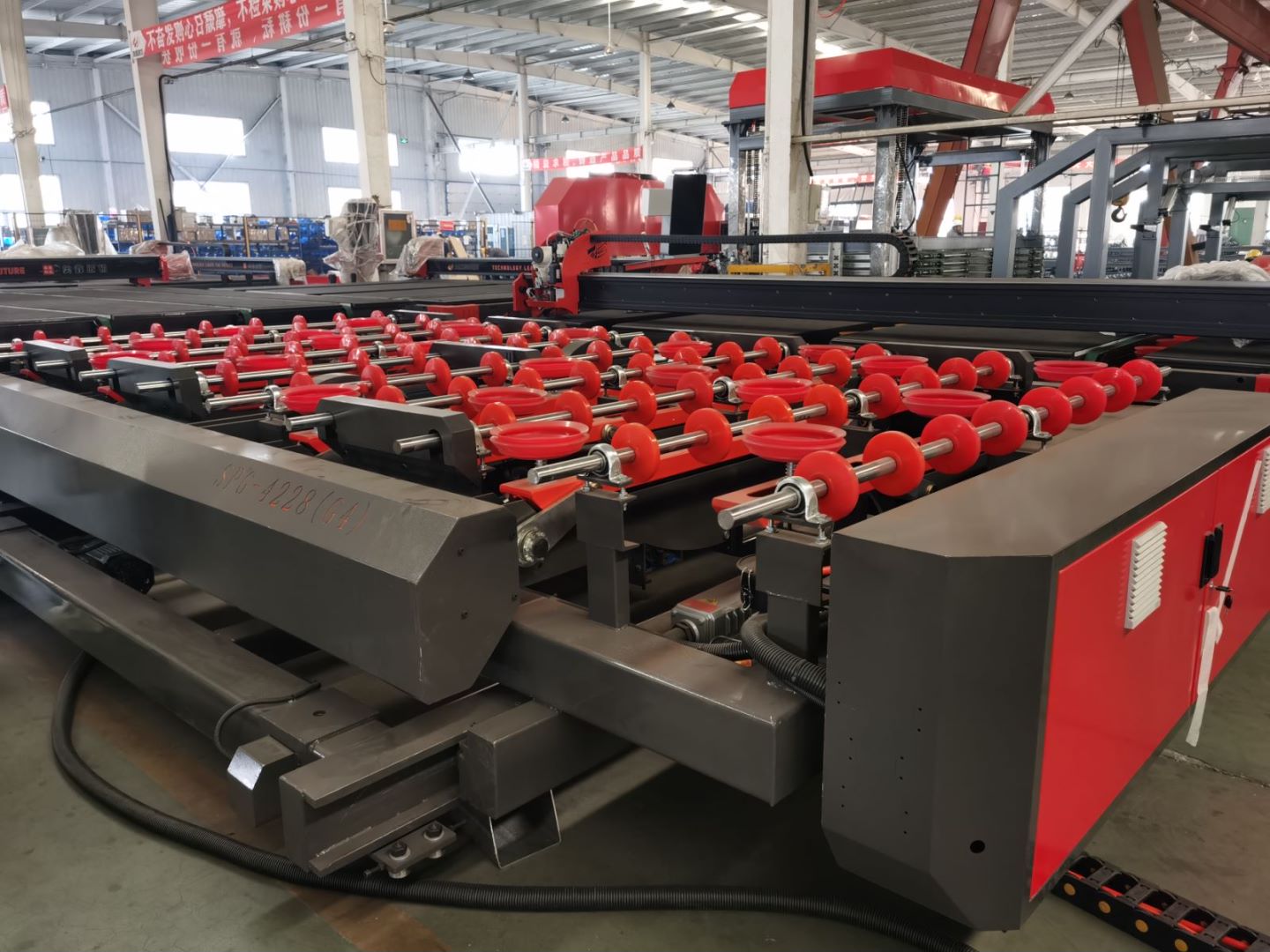

Air-float breaking table with more than a hundred holes are evenly arranged on it.Suitable for

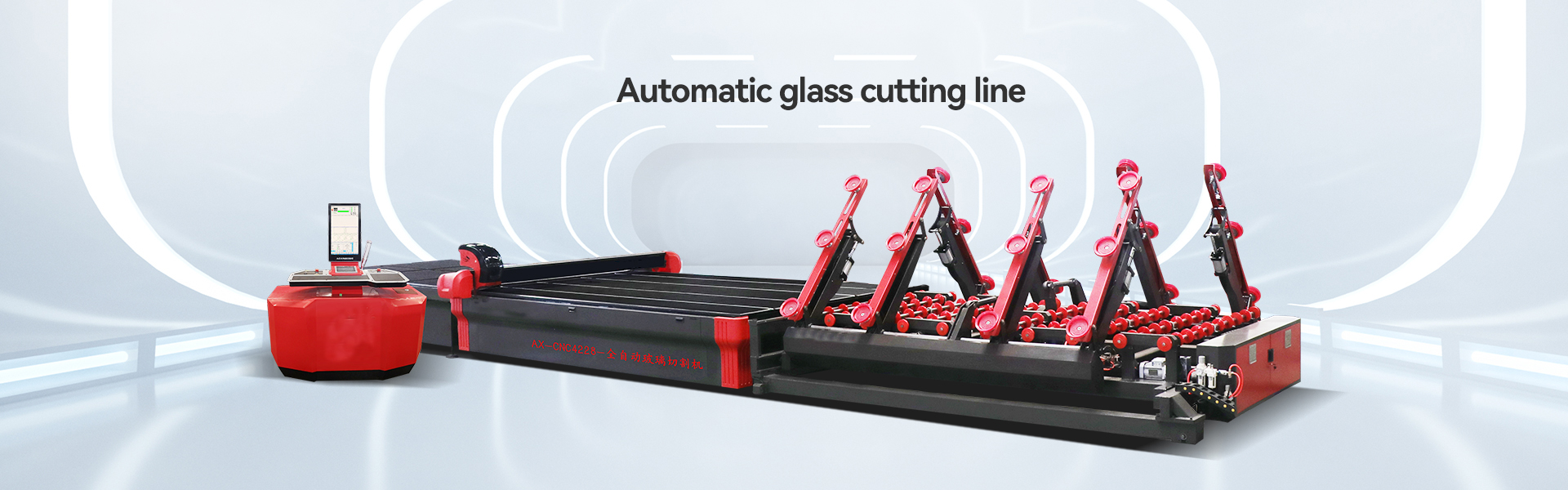

Big size workshop and large production output.This model is a fully automatic glass loading cutting line, which provides glass straight line and special-shaped cutting functions. It is suitable for straight line and special-shaped cutting of glass in construction, decoration, home appliances, mirrors, handicrafts, etc.
◆Top-level components such as bus absolute value motor and imported high-precision rack can effectively ensure the accuracy and stability of glass cutting, and have a longer service life, which can meet the cutting of various shapes of glass.
◆One-piece guide rail, exclusive patent, higher precision of cutting glass.
◆The machine table is made of waterproof, fireproof, anti-high and low temperature, anti-corrosion materials, which will never be deformed.
◆Air flotation function, improve work efficiency, and cooperate with the slicing machine and the slicing machine to form a glass cutting assembly line.
◆The automatic oil filling and automatic pressure adjustment functions of the cutting machine can effectively ensure the cutting stability and cutting effect.
◆No special requirements for operators, simple operation and easy management.
◆Infrared scanning point function and infrared scanning special-shaped template have both functions.
◆The high-intelligent cutting machine optimization software greatly improves the utilization rate of glass and reduces production costs.
◆Top-level components such as bus absolute value motor and imported high-precision rack can effectively ensure the accuracy and stability of glass cutting, and have a longer service life, which can meet the cutting of various shapes of glass.
◆One-piece guide rail, exclusive patent, higher precision of cutting glass.
◆The machine table is made of waterproof, fireproof, anti-high and low temperature, anti-corrosion materials, which will never be deformed.
◆Air flotation function, improve work efficiency, and cooperate with the slicing machine and the slicing machine to form a glass cutting assembly line.
◆The automatic oil filling and automatic pressure adjustment functions of the cutting machine can effectively ensure the cutting stability and cutting effect.
◆No special requirements for operators, simple operation and easy management.
◆Infrared scanning point function and infrared scanning special-shaped template have both functions.
◆The high-intelligent cutting machine optimization software greatly improves the utilization rate of glass and reduces production costs.
| Model | TP-CNC-2720 | TP-CNC-4228 | TP-CNC-5133 |
| Dimensions | L*W*H: 9600mm*2800mm*900mm | L*W*H: 14200mm*3750mm*900mm | L*W*H: 17500mm*4300mm*900mm |
| Table height | 900±30mm (foot adjustable) | 900±30mm (foot adjustable) | 900±30mm (foot adjustable) |
| Power requirements | 380V, 50Hz | 380V, 50Hz | 380V, 50Hz |
| Cut glass size | MAX.2700*2000mm | MAX.4200*2800mm | MAX.5100*3300mm |
| Cut glass thickness | 2~19mm | 2~25mm | 3~25mm |
| Loading station | Single/double | Single/double | double |
| Cutting speed | 0～200m/min (can be set) | 0～200m/min (can be set) | 0～200m/min (can be set) |
| Cutter holder | The cutter head can be rotated 360 degrees (accurately cutting straight lines and special shapes) | The cutter head can be rotated 360 degrees (accurately cutting straight lines and special shapes) | The cutter head can be rotated 360 degrees (accurately cutting straight lines and special shapes) |
| Cutting accuracy | ≤±0.15mm/m | ≤±0.2mm/m | ≤±0.25mm/m |
| Loading cycle | ≤40 | ≤50 | ≤50 |
| Breaking bar | 1+1 | 1+2 | 1+2 |
