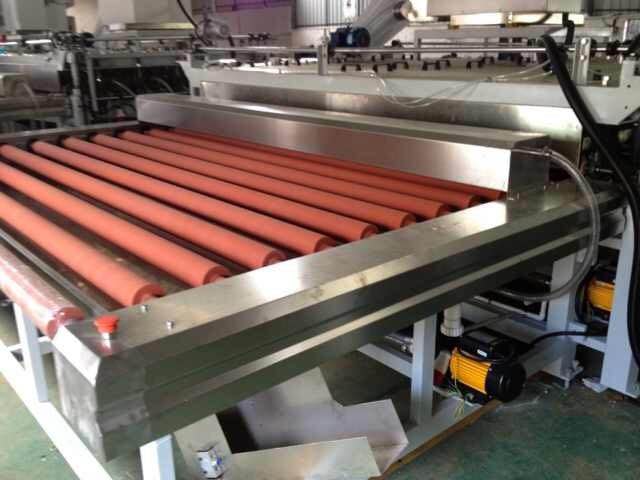

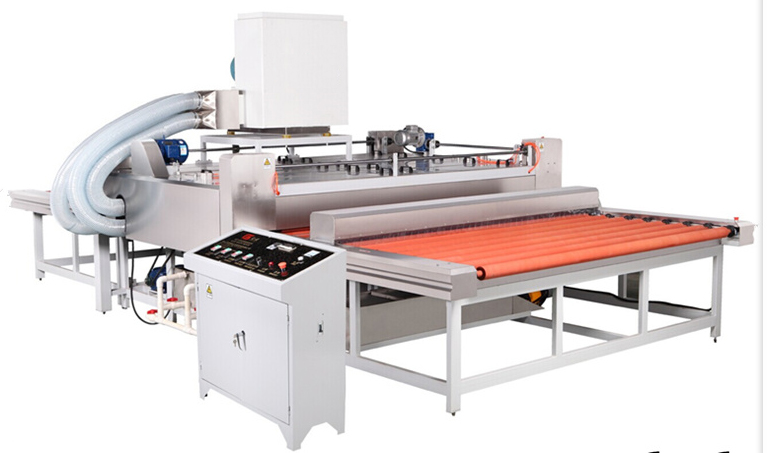

The machine is suitable for flat glass washing and dry, is the necessary equipment of glass processing enterprise. Complete washing drying machine series products, including common glass, coated glass, low-e glass and solar glass series.
◆About cleaning part which is contact with water that all parts of the sheet metal is stainless steel materials.
◆The whole machine conveyor roller structure of vulcanized rubber turnkey (can not contact with acidic liquid).
◆Air into the air chamber is equipped with air filter, air volume is big, glass air drying effect is good, the entire upper fan box installed in the studio.
◆Two groups of wind knife configuration, wind is big, drying effect is good, with heating system.
◆The machine is mainly composed of feeding, washing section, drying and discharging, is cleaning by six brushes;
◆About cleaning part which is contact with water that all parts of the sheet metal is stainless steel materials.
◆The whole machine conveyor roller structure of vulcanized rubber turnkey (can not contact with acidic liquid).
◆Air into the air chamber is equipped with air filter, air volume is big, glass air drying effect is good, the entire upper fan box installed in the studio.
◆Two groups of wind knife configuration, wind is big, drying effect is good, with heating system.
◆The machine is mainly composed of feeding, washing section, drying and discharging, is cleaning by six brushes;
| Model | ZYX-2500 | ZYX-2500B | ZYX-3000C | ZYX-1600B | ZYX-1200A |
| Power supply | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Speed | 0.8-7m/min | 0.8-12m/min | 0.8-7m/min | 0-7m/min | 0.75-3.5m/min |
| Max. processing glass size | 2500mm | 2500mm | 3000mm | 1600mm | 1150mm |
| Min. processing glass size | 500*500mm | 400*400mm | 500*500mm | 350*350mm | 160*160mm |
| Glass thickness | 3-19mm | 3-30mm | 3-25mm | 3-19mm | 3-12mm |
| Total power | 27kw | 35kw | 34kw | 17kw | 11kw |
| Overall dimension (mm) | 5500*3500*3000 | 6100*3500*2800 | 6100*3500*2800 | 4200*2500*2850 | 3800*1200*1000 |
| Weight (kg) | 4200 | 4500 | 4800 | 1600 | 1000 |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
