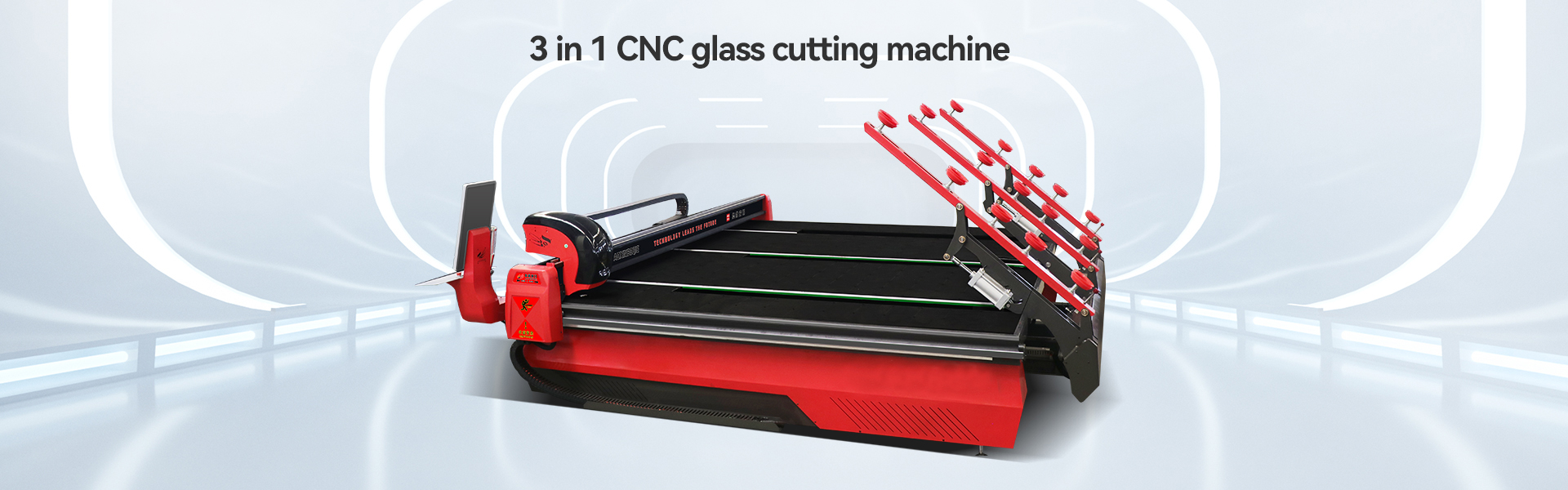

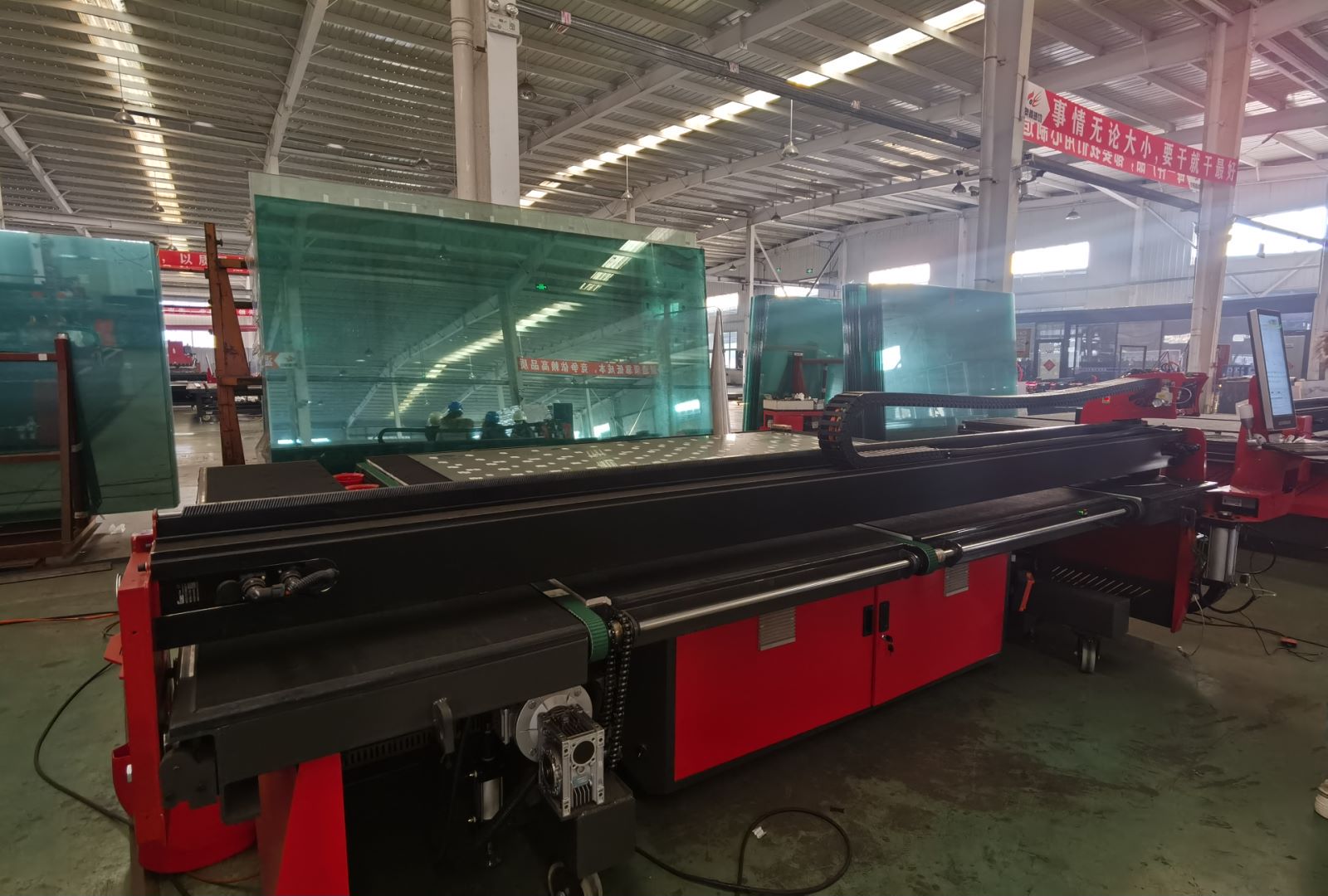

CNC glass cutting machine, with auto loading and breaking function.
◆The frame is made of 6mm manganese steel, with aging/high temperature annealing repeated twice treatment after welding, not easy to deform and more stable.
◆The whole machine is made of integrated beam, aviation aluminum material, high precision,stable and not easy to deform.
◆Industrial computer input, USB data can be imported, easy to operate.
◆Siemens control system and motion controller, imported servo motor and driver, quality assurance.

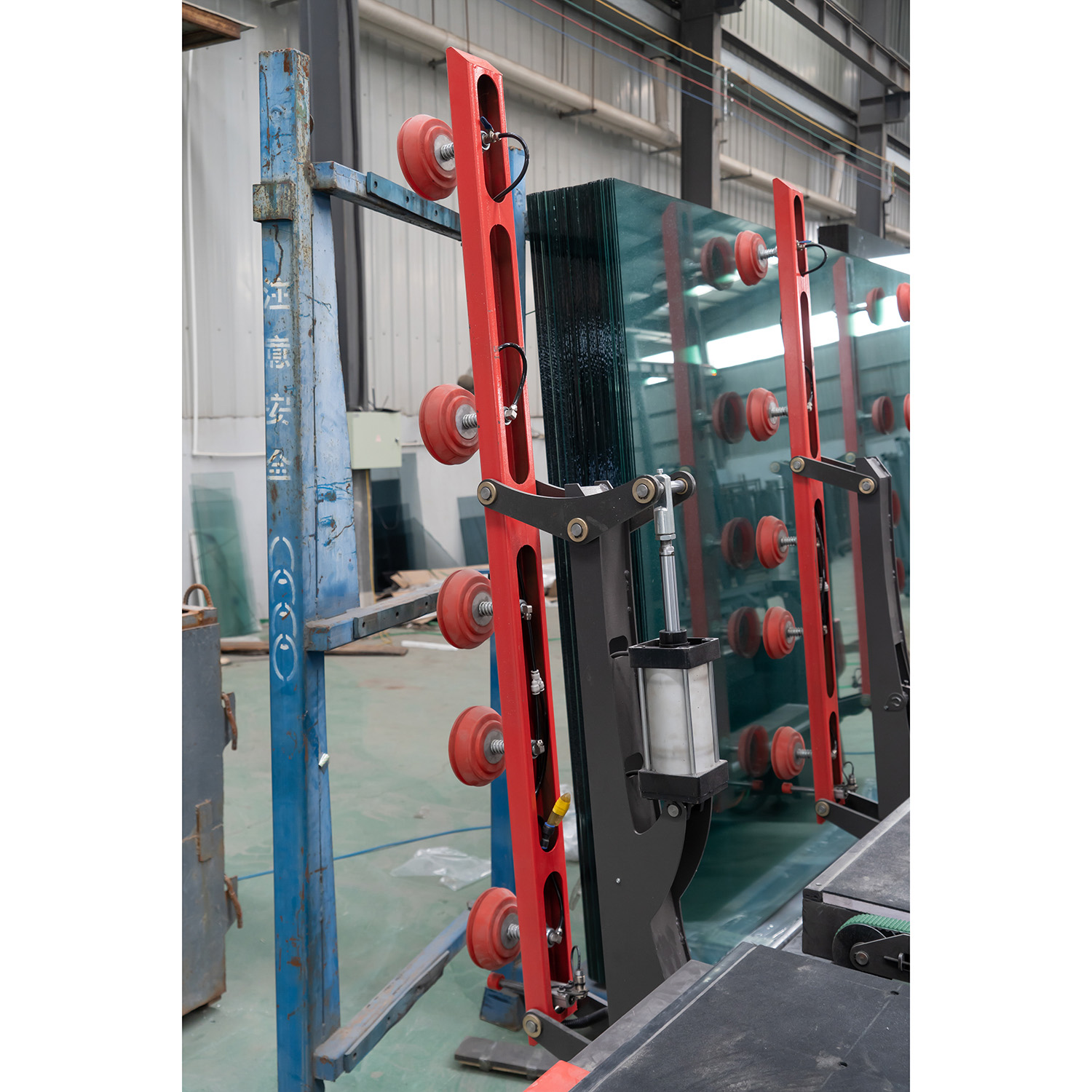

◆Auto finding and loading glass, has the function of avoid loading more pieces, more safe. The big arm can automatically extend and retract 750mm to avoid frequent movement of the machine. Auto loading and unloading glass both available.
◆Japan's Panasonic laser detector, automatic scanning, automatic positioning, automatic edge finding.
◆Three plywood countertops, waterproof, fireproof and high temperature resistance, no deformation.
◆First-class optimization system, stable performance, optimization rate as high as 95-98%.
◆The label printing function can be added, automatic labeling, efficiency is high.
◆Equipped with a breaking table, a breaking ejector rod is installed on the breaking table, and the cylinder pushes the ejector rod to break the glass.
◆The frame is made of 6mm manganese steel, with aging/high temperature annealing repeated twice treatment after welding, not easy to deform and more stable.
◆The whole machine is made of integrated beam, aviation aluminum material, high precision,stable and not easy to deform.
◆Industrial computer input, USB data can be imported, easy to operate.
◆Siemens control system and motion controller, imported servo motor and driver, quality assurance.
◆Auto finding and loading glass, has the function of avoid loading more pieces, more safe. The big arm can automatically extend and retract 750mm to avoid frequent movement of the machine. Auto loading and unloading glass both available.
◆Japan's Panasonic laser detector, automatic scanning, automatic positioning, automatic edge finding.
◆Three plywood countertops, waterproof, fireproof and high temperature resistance, no deformation.
◆First-class optimization system, stable performance, optimization rate as high as 95-98%.
◆The label printing function can be added, automatic labeling, efficiency is high.
◆Equipped with a breaking table, a breaking ejector rod is installed on the breaking table, and the cylinder pushes the ejector rod to break the glass.
Model | TP-CNC-3826A | TP-CNC-2621A |
Dimensions L*W*H: | 4500mm*3000mm*1420mm | 3000mm*2600mm*1420mm |
Worktable height | 800±30mm (foot adjustable) | 800±30mm (foot adjustable) |
Power requirements | 380V, 50Hz | 380V, 50Hz |
Installed power | 10kW | 8kW |
Compressed air | 0.6Mpa | 0.6Mpa |
Cutting glass size | Max.3660*2440mm | Max. 2440*2000mm |
Cutting glass thickness | 3~19mm | 2~19mm |
Head beam speed X axis | 0～200m/min (can be adjusted) | 0～200m/min (can be adjusted) |
Head speed Y axis | 0～200m/min (can be adjusted) | 0～200m/min (can be adjusted) |
Cutting acceleration | ≥6m/s² | ≥6m/s² |
The cutter | Cutting head can be rotated 360 degrees (accurately cutting straight lines and special shapes) | Cutting head can be rotated 360 degrees (accurately cutting straight lines and special shapes) |
Cutting accuracy | ≤±0.2mm/m | ≤±0.2mm/m |
Loading cycle | 15-40s | 15-40s |
Suction piece depth | 750mm | 750mm |
The number of upper arms | 3 | 2 |
single-arm suction cups | 5 | 4 |
Breaking bar | 2+1 | 1+1 |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
