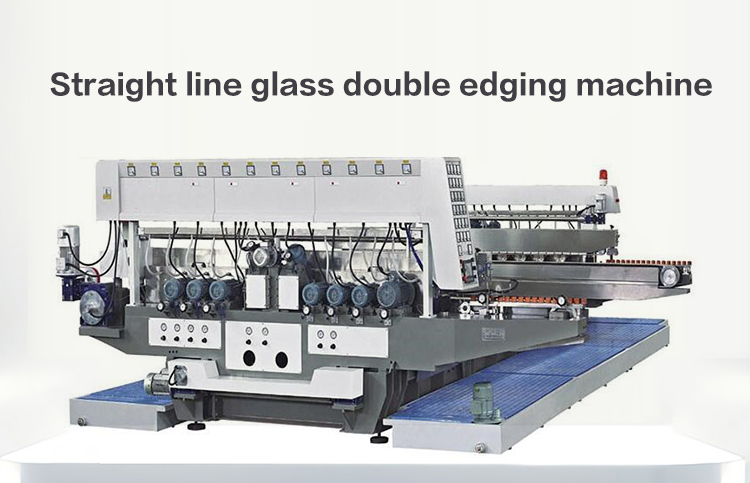

High-speed intelligent glass straight line double edge grinding production line is a machine specially used for processing flat glass double straight edges, suitable for deep processing of glass in construction, furniture, household appliances and other industries.

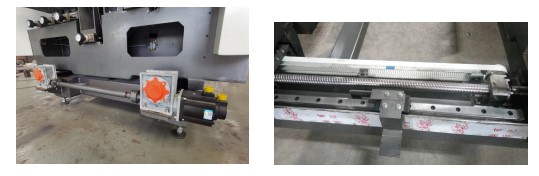

High-speed opening and closing performance: The width adjustment adopts the servo system to drive the high-precision ball screw mechanism, with high adjustment precision, and the opening and closing speed can reach 15m/min.

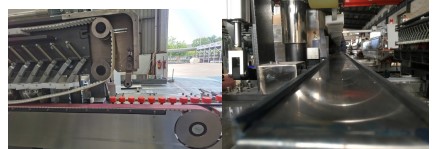

The power conveyed by the main drive synchronous belt adopts dual servos to achieve synchronization, with independent servos on the fixed side and the moving side.

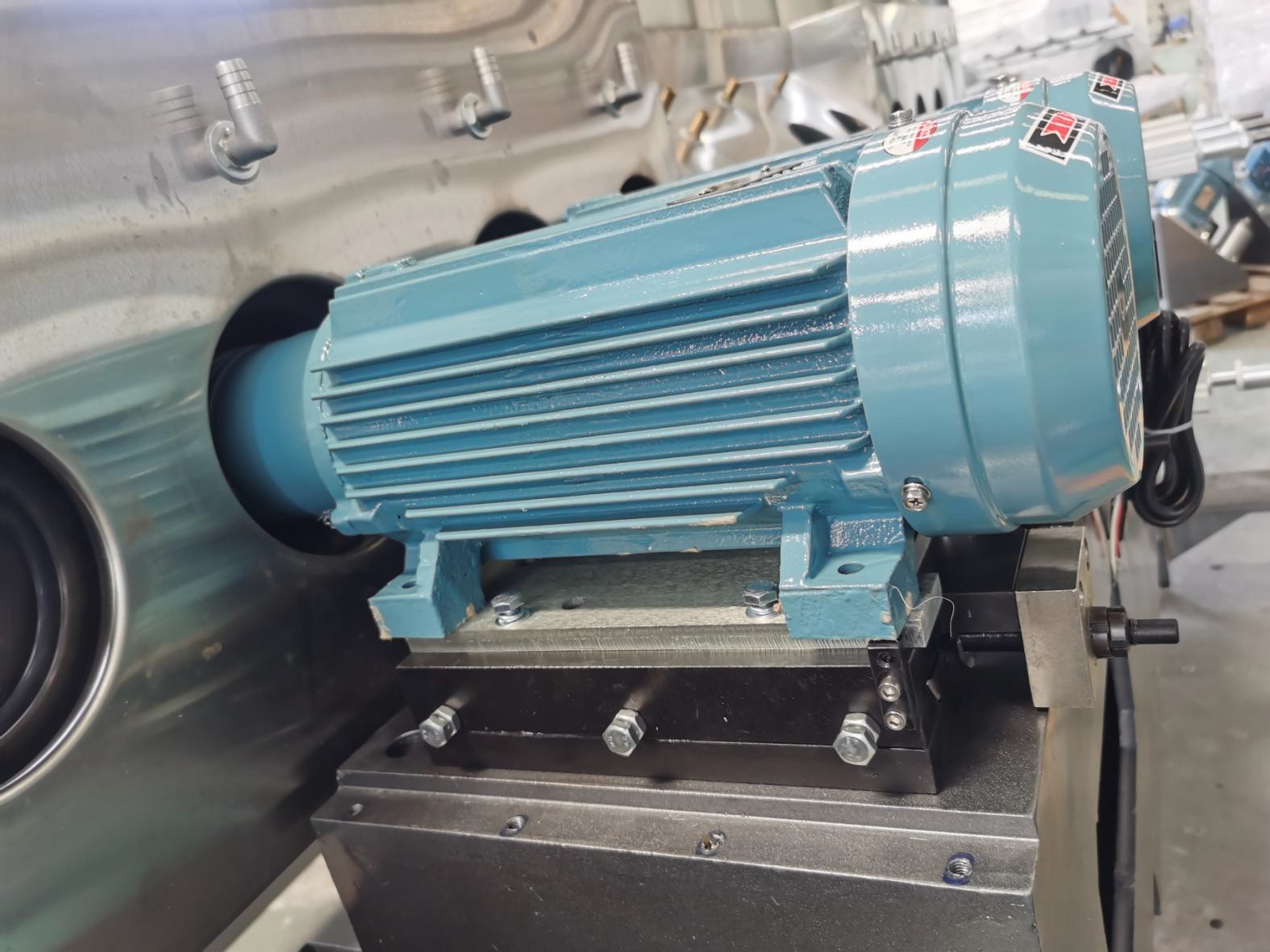

For high-speed edging when the direct-connected grinding head model is selected, the direct-connected grinding head is used with frequency conversion speed regulation, and the motor speed is 4500 rpm.

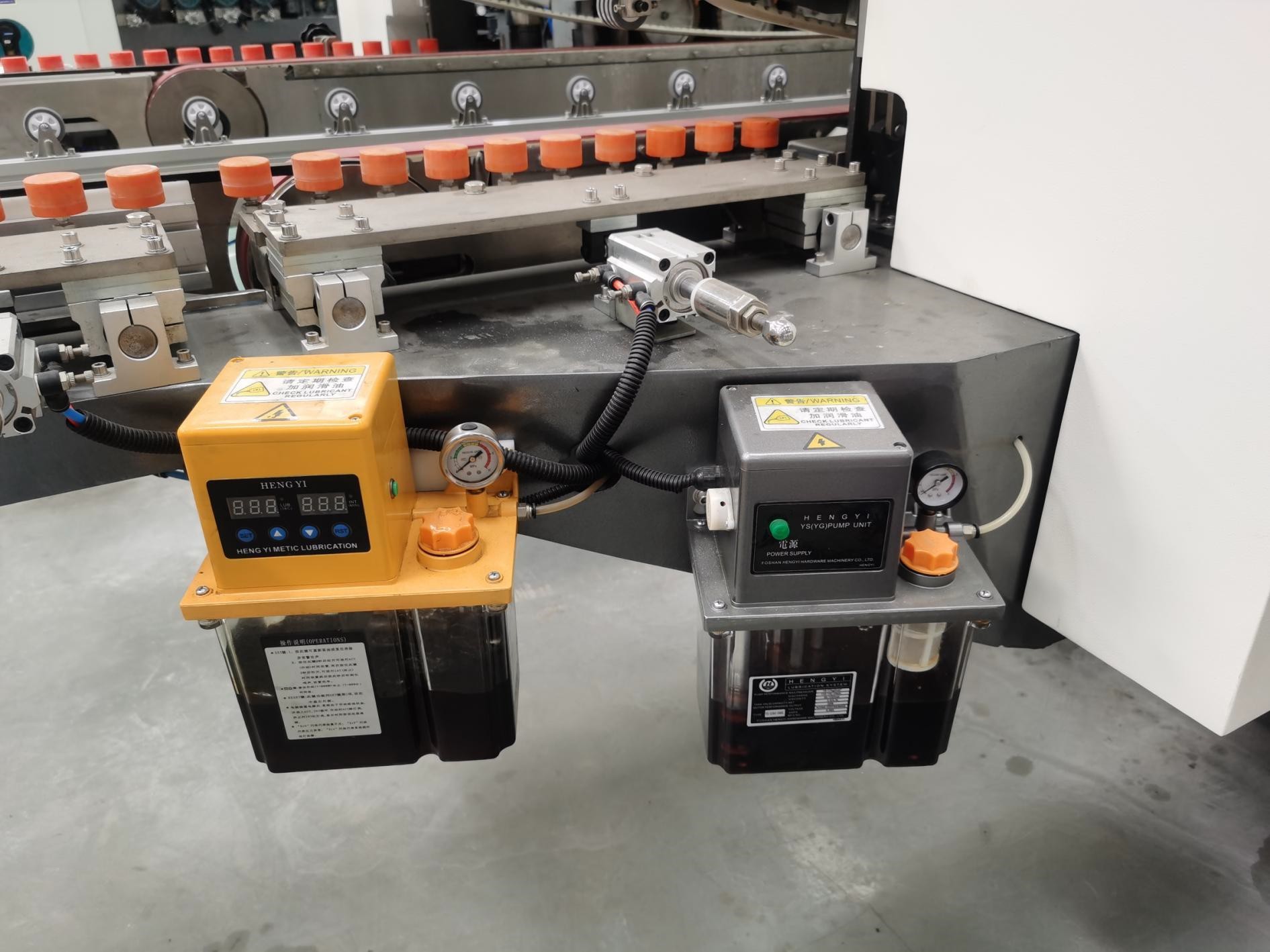

The whole machine is designed with an automatic oiling and lubrication system, which automatically refuels all moving positions. The refueling interval is 24 hours. The amount of refueling is automatically quantitatively distributed.
High-speed opening and closing performance: The width adjustment adopts the servo system to drive the high-precision ball screw mechanism, with high adjustment precision, and the opening and closing speed can reach 15m/min.
The power conveyed by the main drive synchronous belt adopts dual servos to achieve synchronization, with independent servos on the fixed side and the moving side.
For high-speed edging when the direct-connected grinding head model is selected, the direct-connected grinding head is used with frequency conversion speed regulation, and the motor speed is 4500 rpm.
The whole machine is designed with an automatic oiling and lubrication system, which automatically refuels all moving positions. The refueling interval is 24 hours. The amount of refueling is automatically quantitatively distributed.
| Parameter of Double Straight Line Edger Machine | |
|---|---|
| Model | ZSM4225 |
| Motor of each side | 12 / 12 PCS |
| Processing speed | 1-15m/min |
| Width adjustment speed | 15m/min |
| Glass thickness | 3-25mm |
| Glass size | 300-4200mm / 300-2500mm |
| Arris width | 1-3mm |
| Arris width tolerance | ≤0.2mm |
| Parallel tolerance | ≤0.2mm/m |
| Diagonal tolerance | ≤0.5mm/m |
| Power | 80kw for one machine |
| Voltage | 380V / 50Hz (Can be customized ) |
| Air pressure | 0.6--0.8Mpa |
| Temperature | Minus 10 to 50℃ |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
