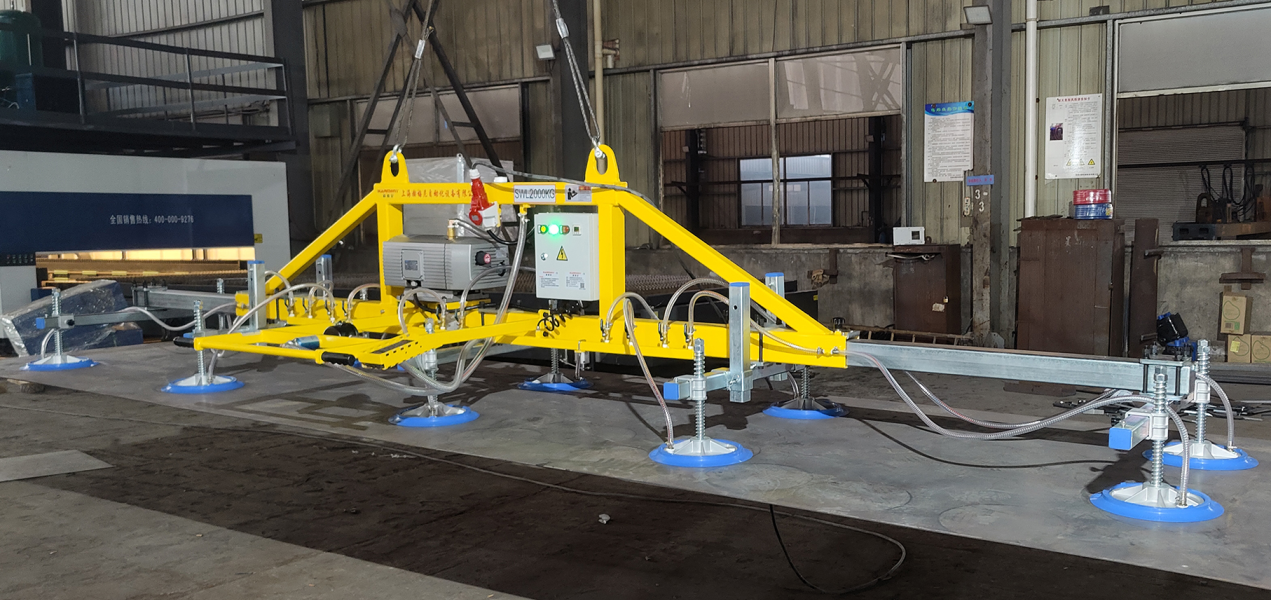

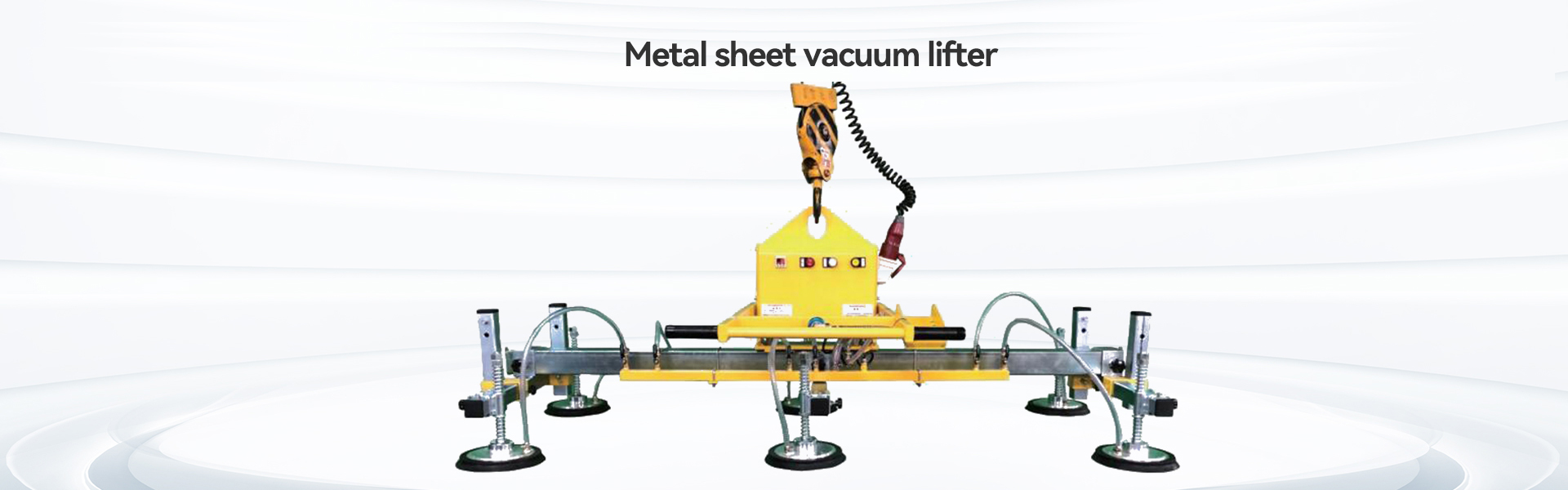

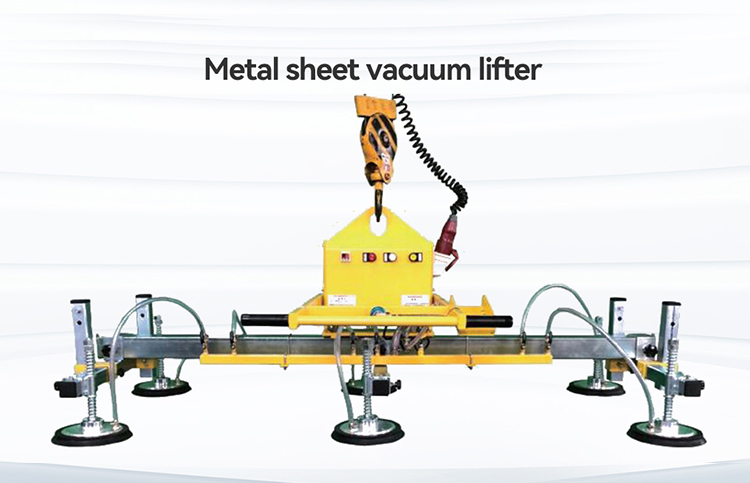

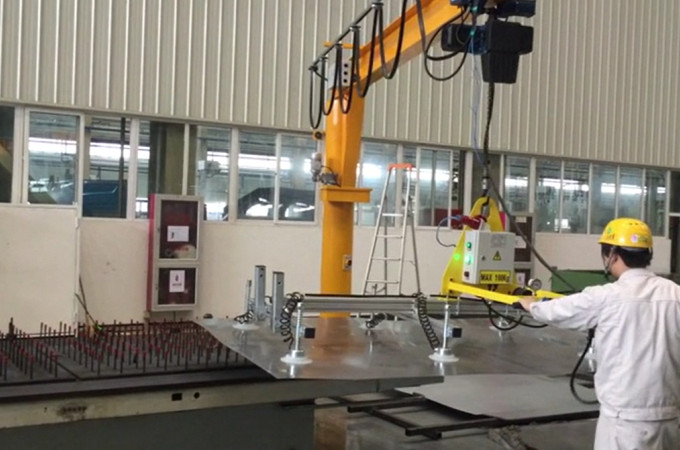

HP-BS series and HP-BL series of equipment are widely used for non-destructive handling of various plates, including corrosion resistant plates, aluminium plates, titanium plates, composite panels, etc. HP-BL series for large panels.
◆The new 12-volt battery system does not require power or air connection, which is mobile, flexible and convenient, especially suitable for small suction and lifting equipment.
◆Sucker position can be adjusted to meet dimensional change of different plates.
◆Large-flow vacuum pump and large-volume accumulator are adopted, which have strong suction and are safe and reliable.
◆Vacuum alarm system ensures that the whole set of equipment is kept within a relatively constant safe pressure value.
◆Sucker position can be adjusted to meet dimensional change of different plates.
◆The new 12-volt battery system does not require power or air connection, which is mobile, flexible and convenient, especially suitable for small suction and lifting equipment.
◆Sucker position can be adjusted to meet dimensional change of different plates.
◆Large-flow vacuum pump and large-volume accumulator are adopted, which have strong suction and are safe and reliable.
◆Vacuum alarm system ensures that the whole set of equipment is kept within a relatively constant safe pressure value.
◆Sucker position can be adjusted to meet dimensional change of different plates.
HP-BS series
| Model | HP-BS400-6S | HP-BS600-8S | HP-BS800-6S | HP-BS1000-6S | HP-BS1500-8S | HP-BS2000-10S |
| Safety-absorption | 400KG | 400KG | 800KG | 1000KG | 1500KG | 2000KG |
| Control Mode | Manual/Remote Control | Manual/Remote Control | Manual/Remote Control | Manual/Remote Control | Manual/Remote Control | Manual/Remote Control |
| Power System | DC12V/380V | DC12V/380V | DC12V/380V | DC12V/380V | DC12V/380V | DC12V/380V |
| Machine Size | 2000X1000mm | 2000X1000mm | 2500X1000mm | 2000X1000mm | 2000X1000mm | 2500X1000mm |
| Quantity and size of sucker | 6Xφ200mm | 8Xφ200mm | 8Xφ200mm | 6xΦ300mm | 8xΦ300mm | 10xΦ300mm |
| Net weight | 100kg | 110kg | 120kg | 110kg | 180kg | 250kg |
HP-BL series
| Product & Model | Size | Sucker Diameter | Sucker Diameter | Power System | Safety Loading | Dead Load |
| HP-BL2500-14S | 4500X1000mm | Φ300mm | 14 | 380V | 2500kg | 400Kg |
| HP-BL3000-10S | 5000X1000mm | Φ360mm | 10 | 380V | 3000kg | 500Kg |
| HP-BL3500-18S | 6000X1000mm | Φ300mm | 18 | 380V | 3500kg | 600Kg |
| HP-BL4000-14S | 6000X1000mm | Φ360mm | 14 | 380V | 4000kg | 1000Kg |
| HP-BL5000-18S | 8000X1000mm | Φ360mm | 18 | 380V | 5000kg | 1200Kg |
| HP-BL6000-20S | 9000X1000mm | Φ360mm | 20 | 380v | 6000kg | 1500kg |
