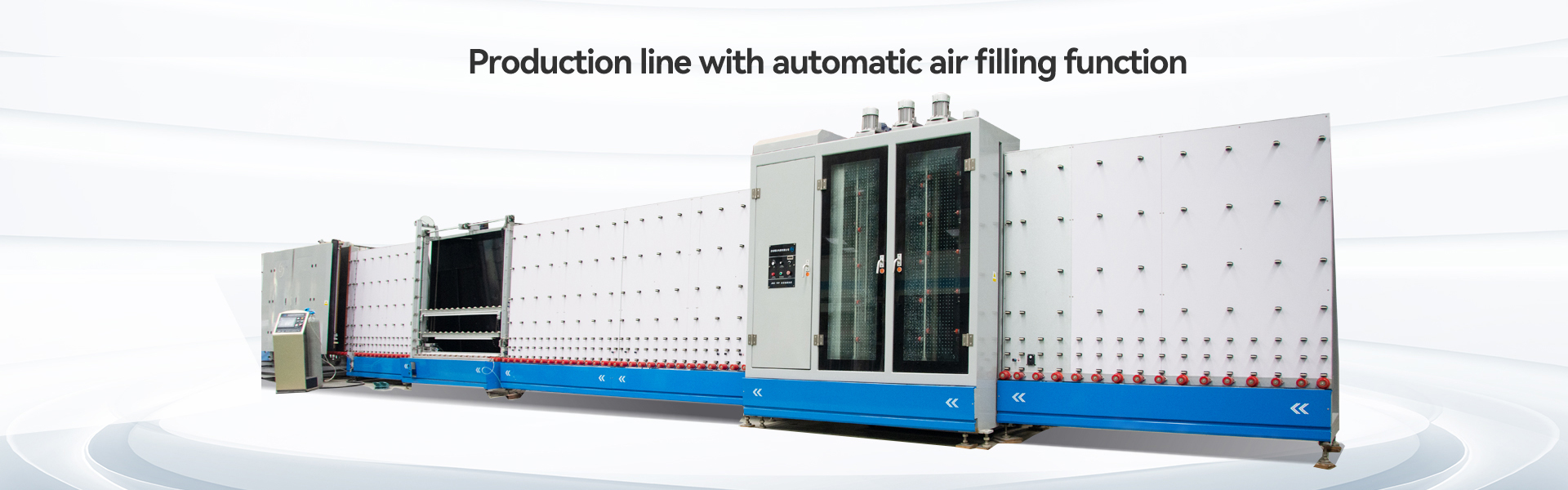

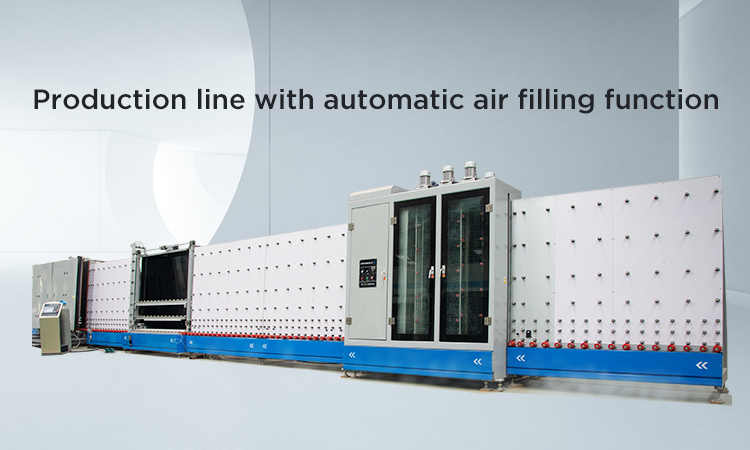

Automatic insulating glass production line with argon gas filling
◆Full PLC control system, touch screen man-machine interface.
◆Digital control of the production line saves labor time and improves production efficiency.
◆Automatically identify the film layer of coated glass and LOW-E glass.

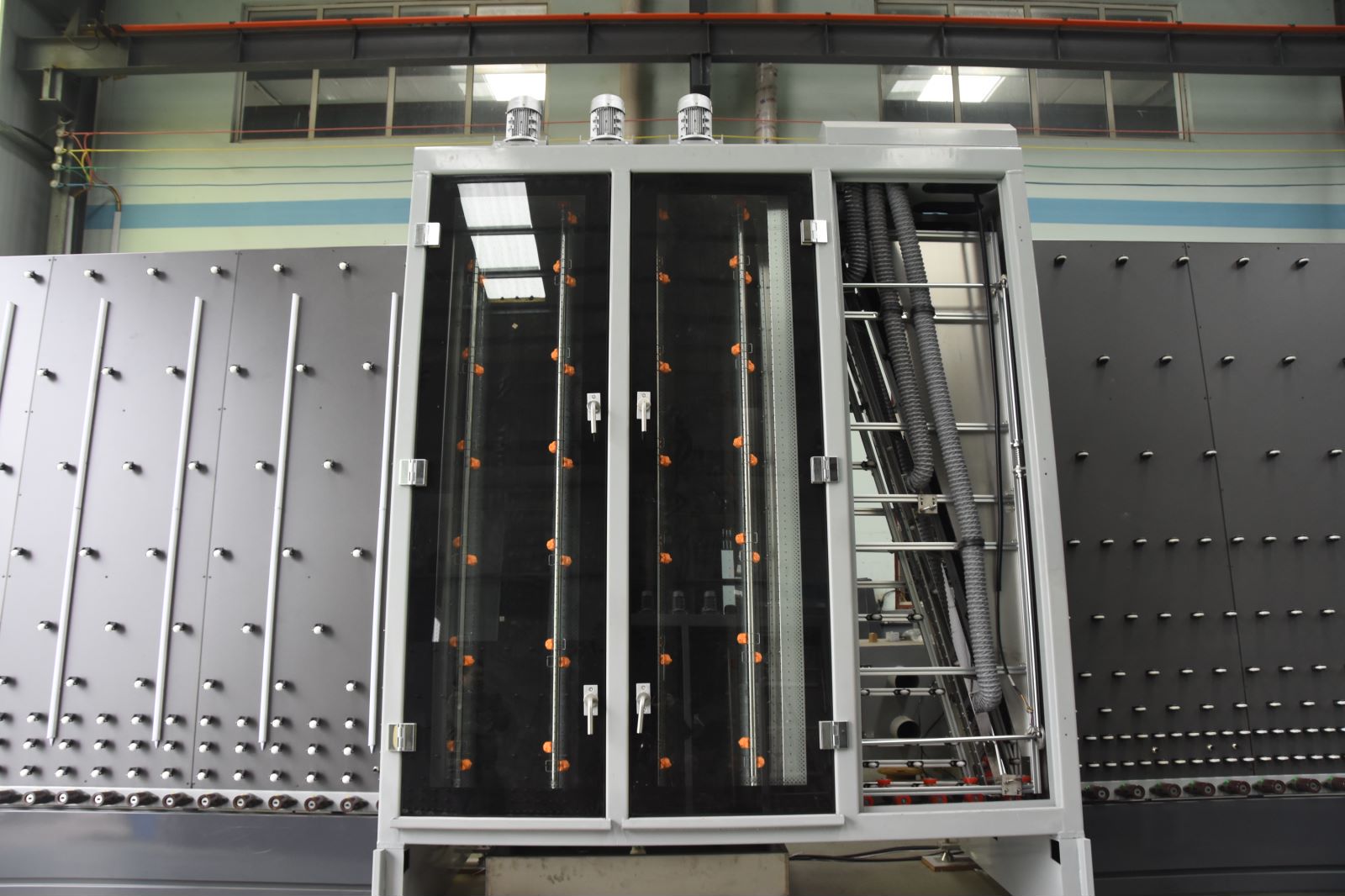

◆Can clean online and offline Low-E glass.
◆The cleaning air knife is automatically adjusted according to the thickness of the glass.
◆Energy-saving system for intermittent work of digital control production line.

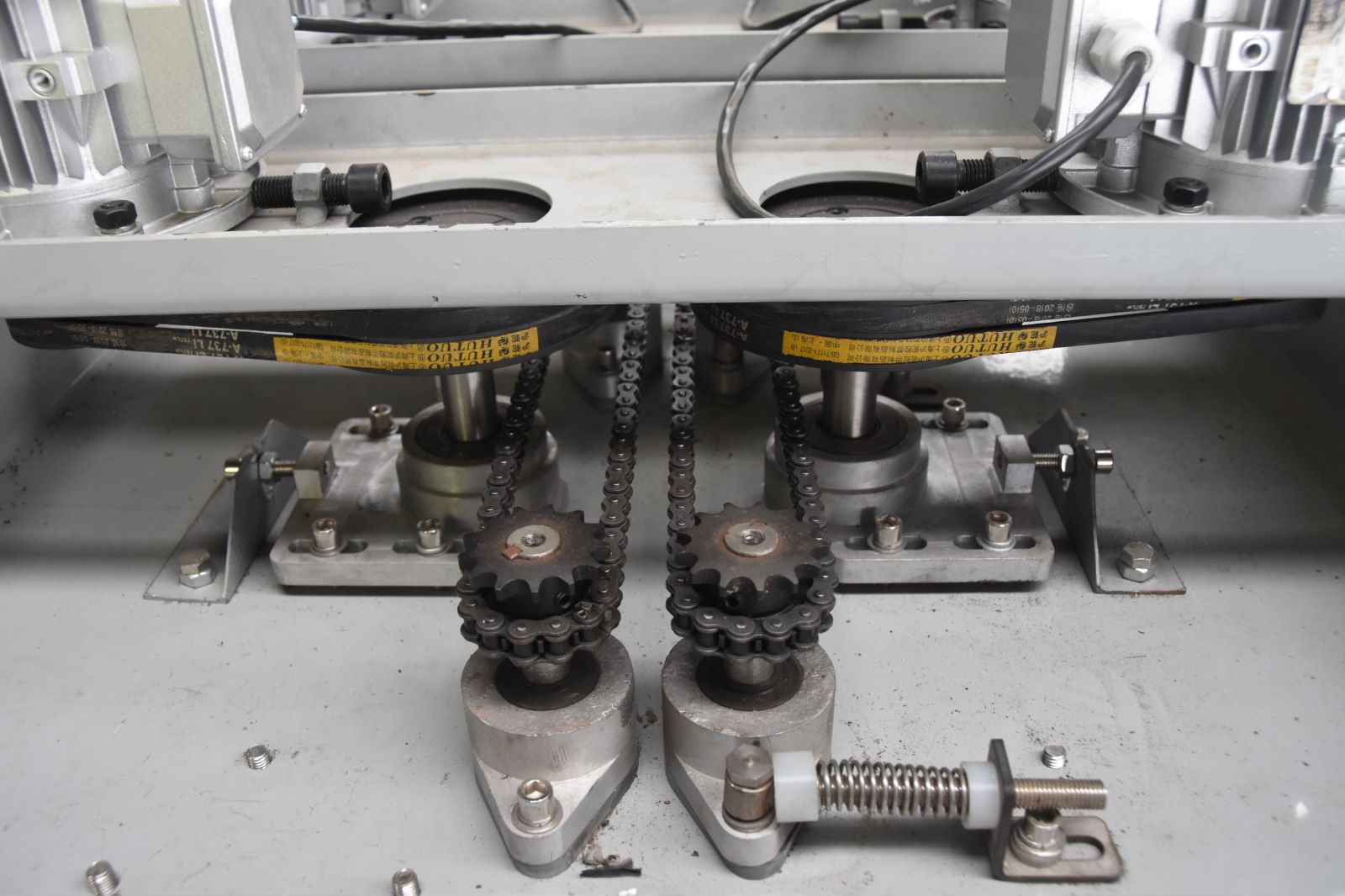

◆The speed of cleaning Low-E glass brush can be driven by frequency conversion.
◆Automatic positioning system for aluminum frame (optional).
◆Automatic glass positioning system.
◆Automatically detect the length and height of the glass, automatically adjust the optimal inflatable space, and save air consumption.

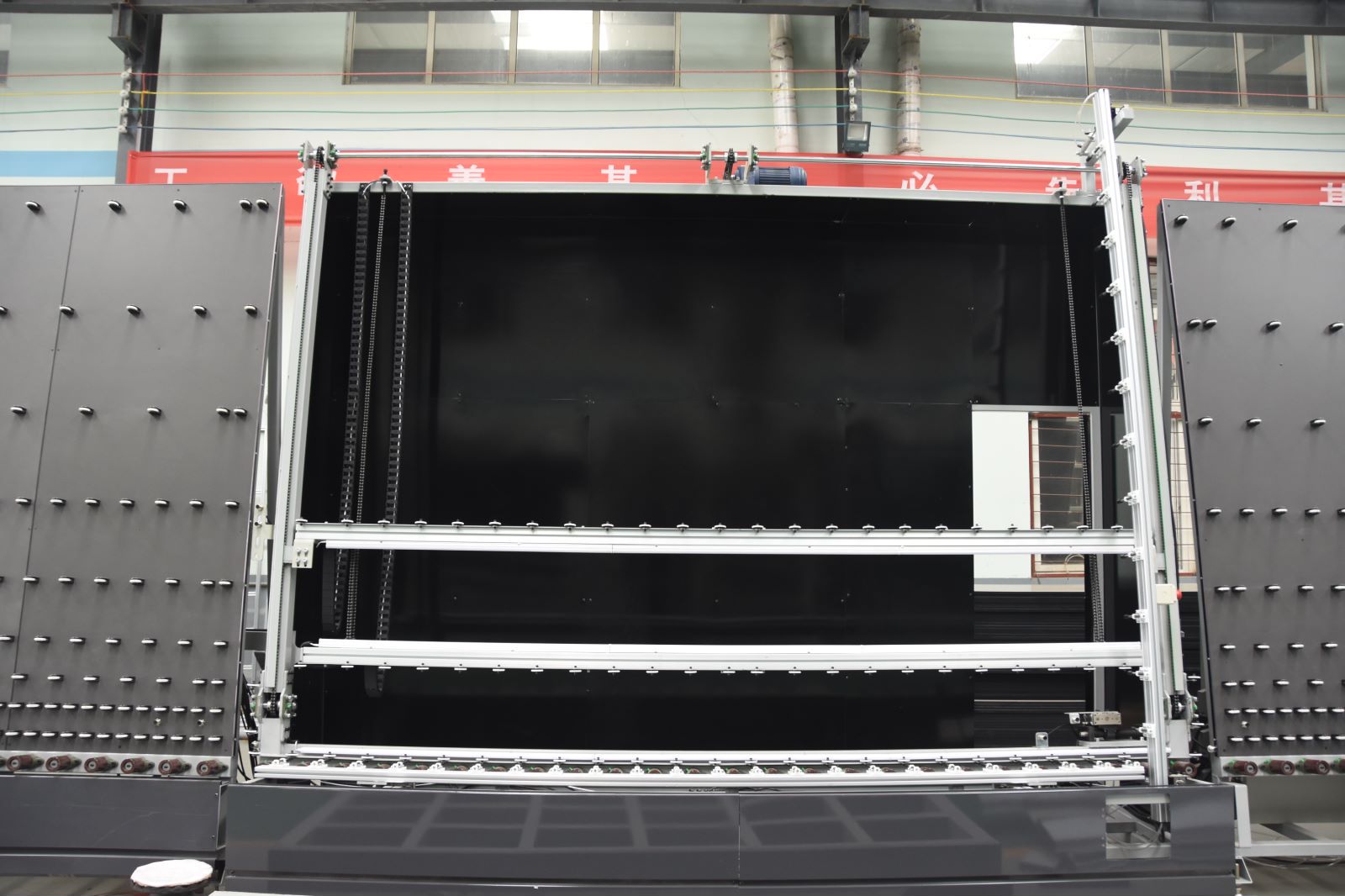

◆The three-axis/four-axis servo linkage of the tablet press has the functions of integrating, pressing and inflating.
◆The inflation function can be selected when producing double-layer insulating glass.
◆Ensure that the argon content of insulating glass is ≥85% (GB/T11944-2012 national new standard).
◆Full PLC control system, touch screen man-machine interface.
◆Digital control of the production line saves labor time and improves production efficiency.
◆Automatically identify the film layer of coated glass and LOW-E glass.
◆Can clean online and offline Low-E glass.
◆The cleaning air knife is automatically adjusted according to the thickness of the glass.
◆Energy-saving system for intermittent work of digital control production line.
◆The speed of cleaning Low-E glass brush can be driven by frequency conversion.
◆Automatic positioning system for aluminum frame (optional).
◆Automatic glass positioning system.
◆Automatically detect the length and height of the glass, automatically adjust the optimal inflatable space, and save air consumption.
◆The three-axis/four-axis servo linkage of the tablet press has the functions of integrating, pressing and inflating.
◆The inflation function can be selected when producing double-layer insulating glass.
◆Ensure that the argon content of insulating glass is ≥85% (GB/T11944-2012 national new standard).
| Model | JYCH-2000 | JYCH-2500 |
| Input power | 380V/3P | 380V/3P |
| Air Pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Max.Glass size | 2000*2500mm | 2500*3000mm |
| Min.Glass size | 300*450mm | 300*450mm |
| Glass thickness | 3-18mm | 3-18mm |
| Working speed | 8-45m/min | 8-45m/min |
| Low-E brushes | 6 brushes | 6 brushes |
| Overall dimension | 20800*2000*3200mm | 24600*2000*3700mm |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
