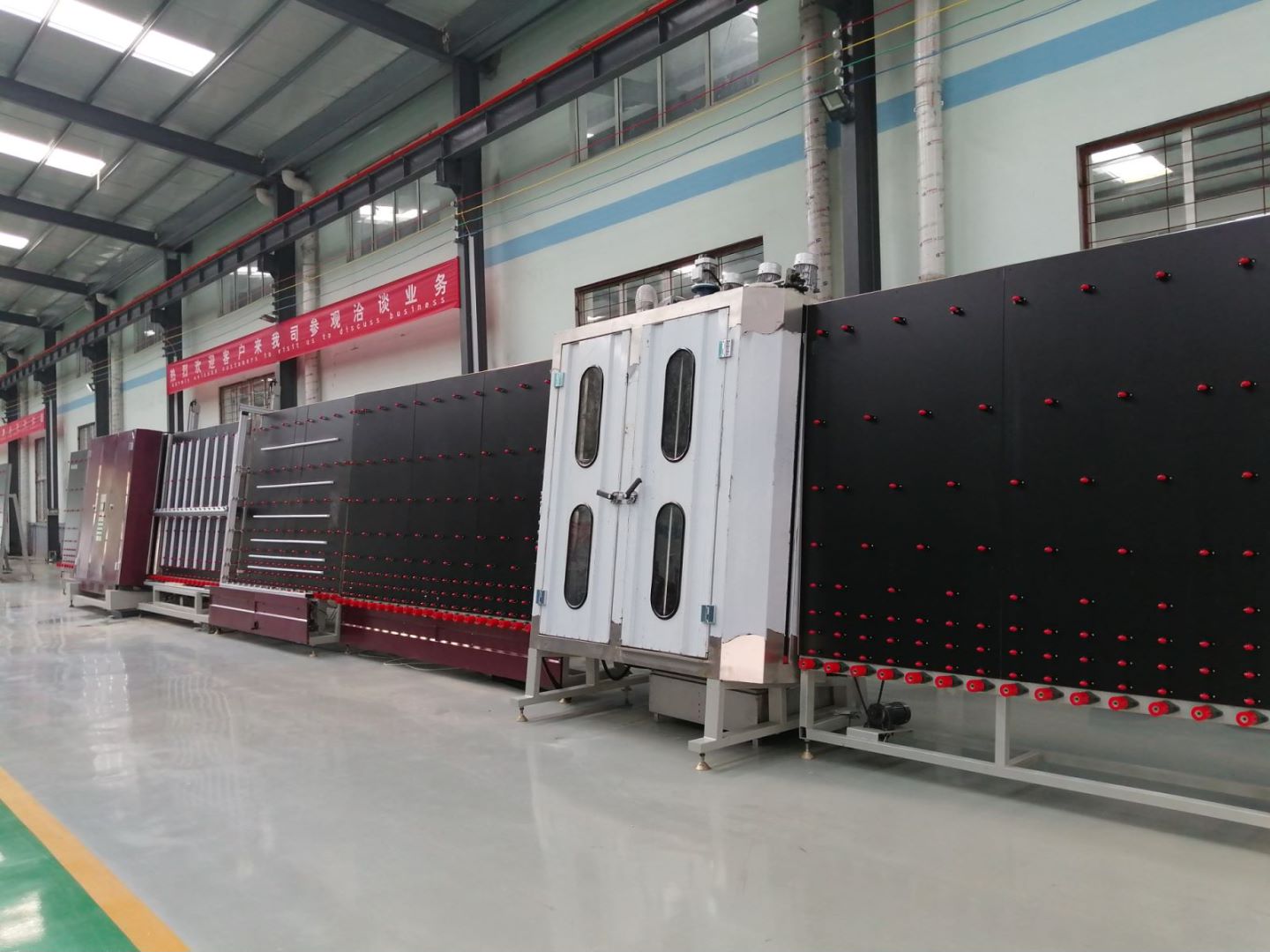

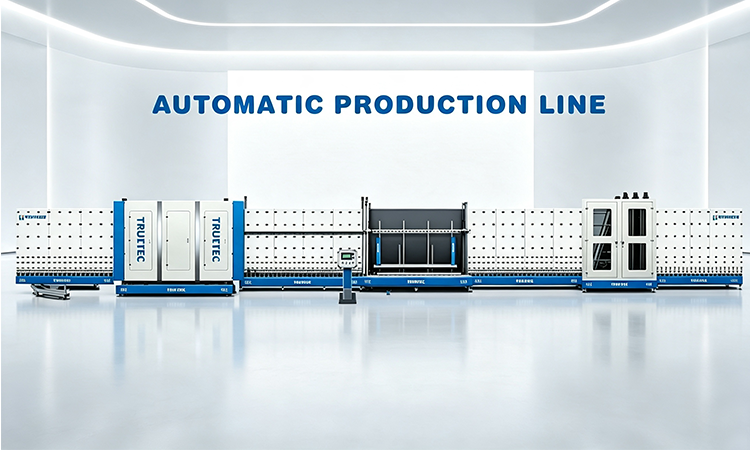

This is Automatic Insulating Glass Production Line. Optional equipments: Glass cutting machine, edge polishing machine, aluminum spacer bending machine and etc.
◆PLC control touch screen human-machine interface.
◆Automatic identification of coated glass and LOW-E glass film layer.

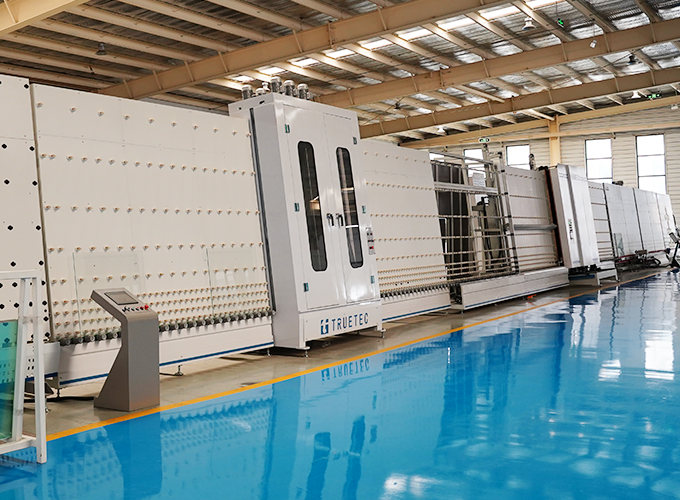

◆The application of imported vacuum generator and suction cup make better glass catching effect.

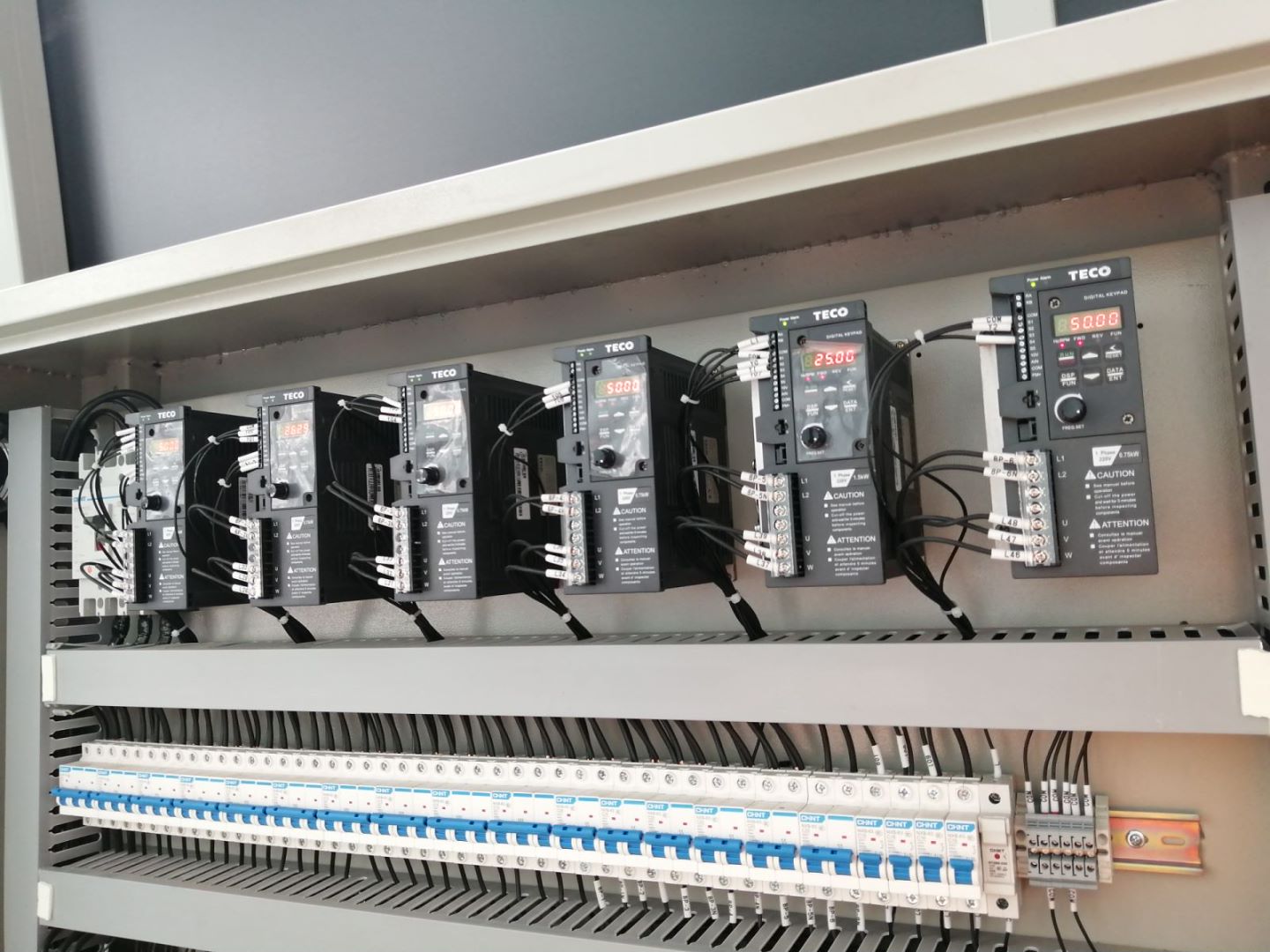

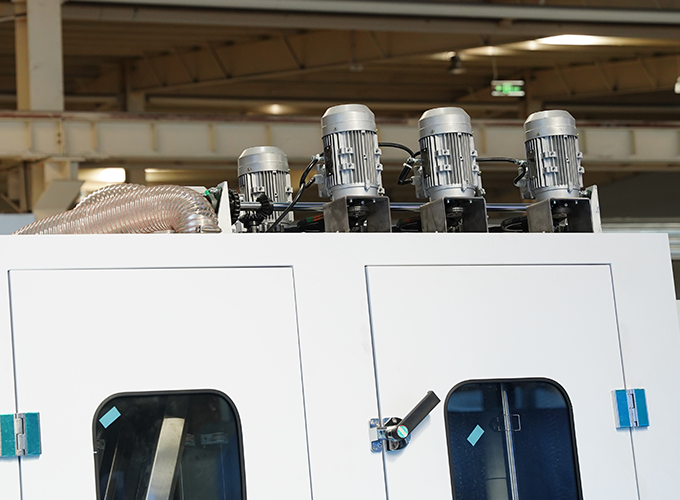

◆Three pairs of glass cleaning hairbrushes, rotation speed can be driven by frequency conversion (optional equipment).
◆Big-small sized and three layer hallow glass can be produced according to customer requirements (optional equipment).
◆Digital controlled assembling line to save production time and improve efficiency.
◆The protection panel has been processed with plastic spraying to achieve beautiful appearance and durable service life.
◆Cleaning machine is made with stainless steel and resistance material.
◆All electric appliances are selected from famous international brand.
◆The press section can be pushed to 450mm with big stroke.to make it convenience for maintenance.
◆When for exterior conjunction, the plate press adopts central location way.
◆Free alternative between interior and exterior conjunction.

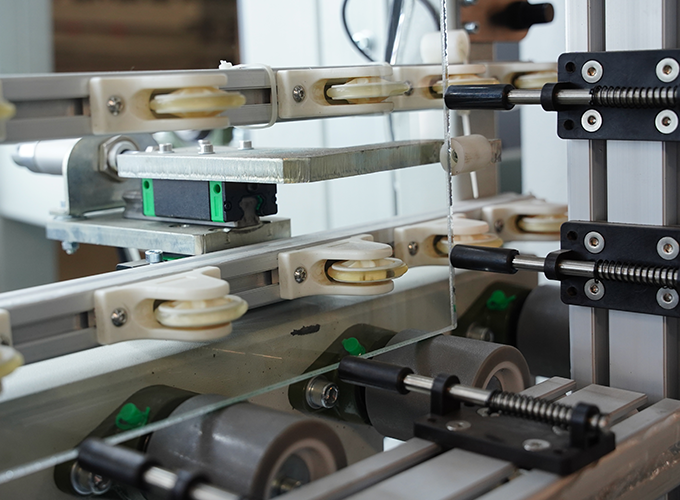

◆The press section adopts opening-door style to convenient overhaul and maintenance.

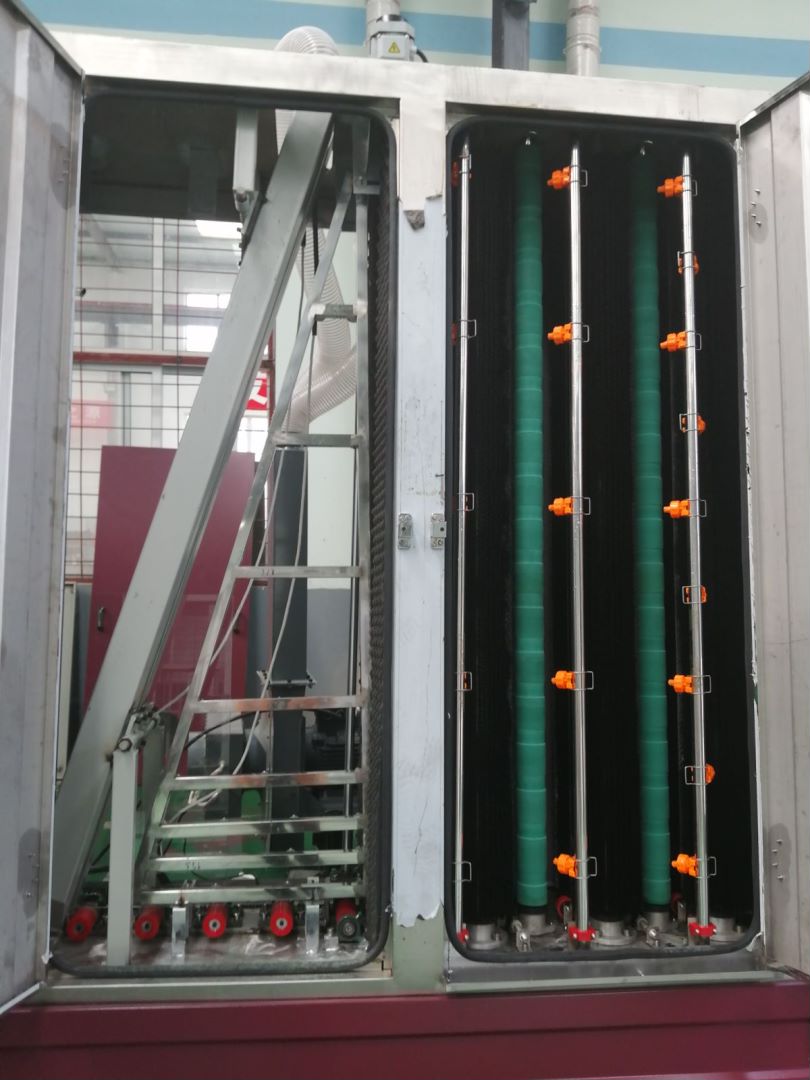

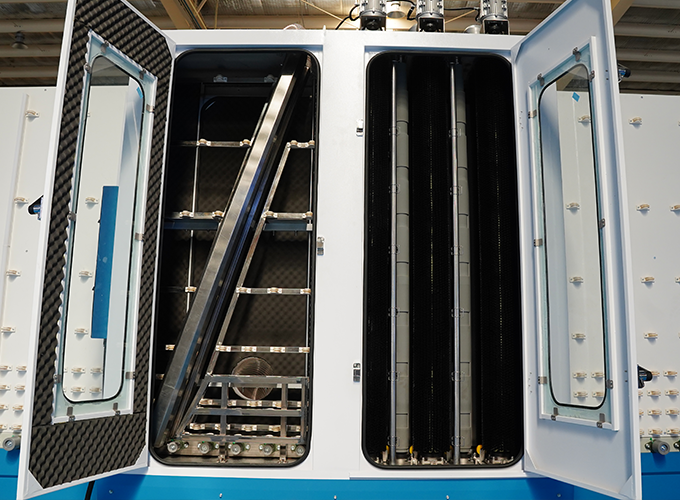

◆With 3 pairs of brushes, 2 pairs of air knives.

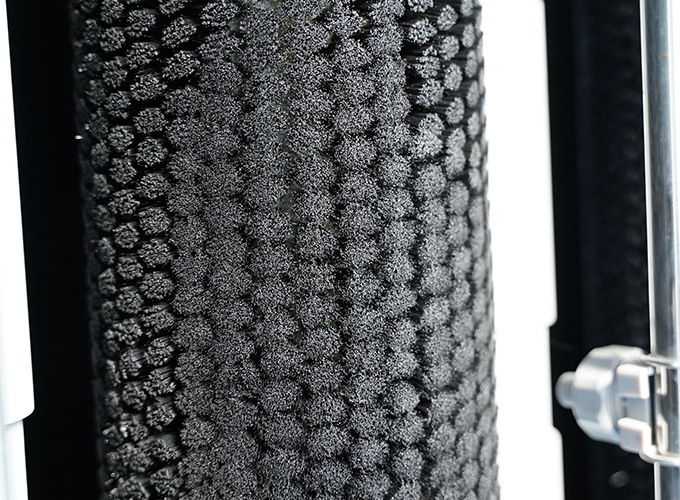

◆Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.
◆PLC control touch screen human-machine interface.
◆Automatic identification of coated glass and LOW-E glass film layer.
◆The application of imported vacuum generator and suction cup make better glass catching effect.
◆Three pairs of glass cleaning hairbrushes, rotation speed can be driven by frequency conversion (optional equipment).
◆Big-small sized and three layer hallow glass can be produced according to customer requirements (optional equipment).
◆Digital controlled assembling line to save production time and improve efficiency.
◆The protection panel has been processed with plastic spraying to achieve beautiful appearance and durable service life.
◆Cleaning machine is made with stainless steel and resistance material.
◆All electric appliances are selected from famous international brand.
◆The press section can be pushed to 450mm with big stroke.to make it convenience for maintenance.
◆When for exterior conjunction, the plate press adopts central location way.
◆Free alternative between interior and exterior conjunction.
◆The press section adopts opening-door style to convenient overhaul and maintenance.
◆With 3 pairs of brushes, 2 pairs of air knives.
◆Two pairs of soft brushes for Low-E glass and coated glass, one pair of hard brush for normal float glass.
| Model | JYW-1800 | JYW-2000 | JYW-2200 | JYW-2500 |
| Voltage Power | 380V 23KW | 380V 23KW | 380V 28KW | 380V 28KW |
| Air Pressure | 0.5~0.8 Mpa | |||
| Max. Glass size | 1800*2500mm | 2000*2500mm | 2200*3000mm | 2500*3000mm |
| Min. Glass size | 280*450mm | |||
| Glass thickness | 3~18mm | |||
| Working speed | 8~45m/min | |||
| Overall dimension | 18500*2100*3000mm | 18500*2100*3200mm | 21500*2000*3400mm | 21500*2000*3700mm |
| Total weight | 4500kg | 5000kg | 6000kg | 7000kg |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
