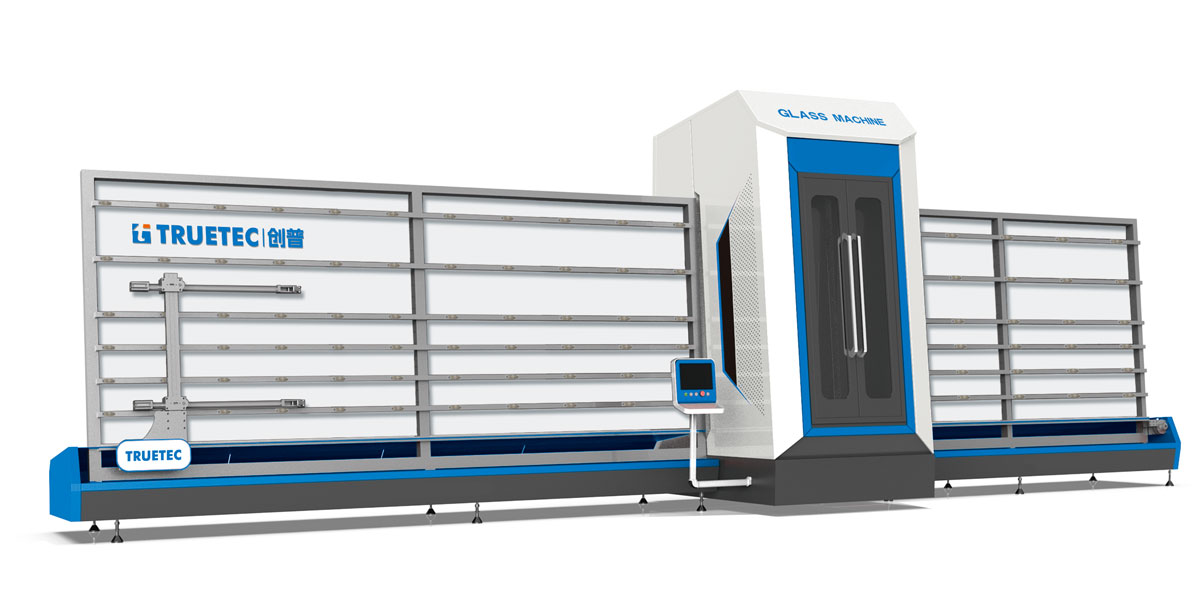

This vertical CNC high-speed glass processing center is the 4th-generation product independently developed by our company. The main advantages of this product are simple operation, high production efficiency and space saving.

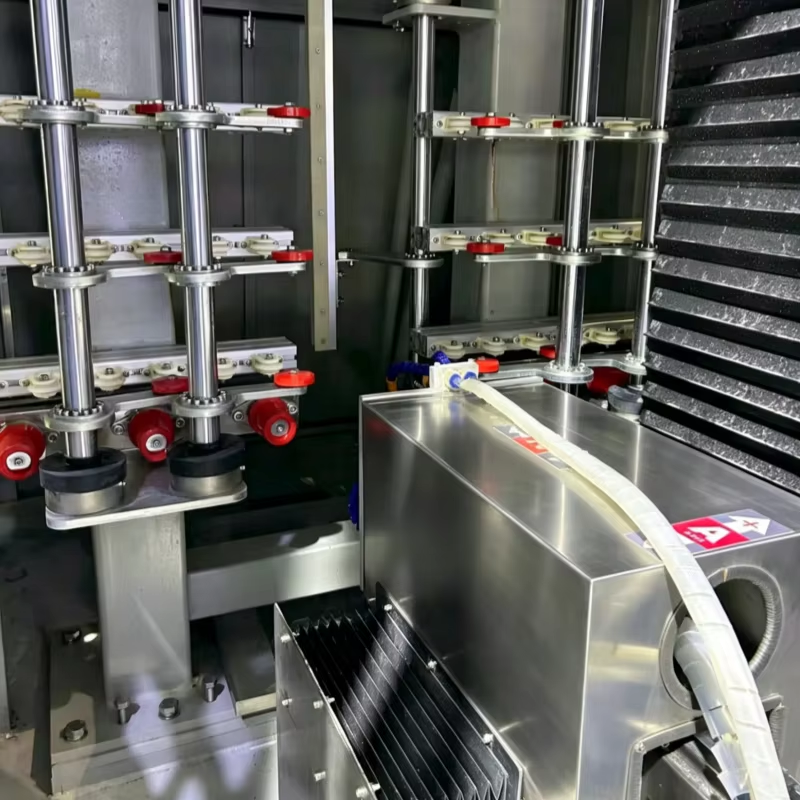

A single tool can process a variety of different patterns, and drilling, milling and grinding functions can be realized during processing according to customer requirements, truly achieving multi-purpose use with one tool. The machine can also be connected in line with vertical glass washing machines and glass loading/unloading machines, greatly improving production efficiency. A.Equipped with 4-axis servo motors and computer control, the machine allows users to select patterns from the built-in gallery on the operation panel, or import patterns to the equipment operating system via USB flash drive (CAD format) or direct data cable connection to a computer.

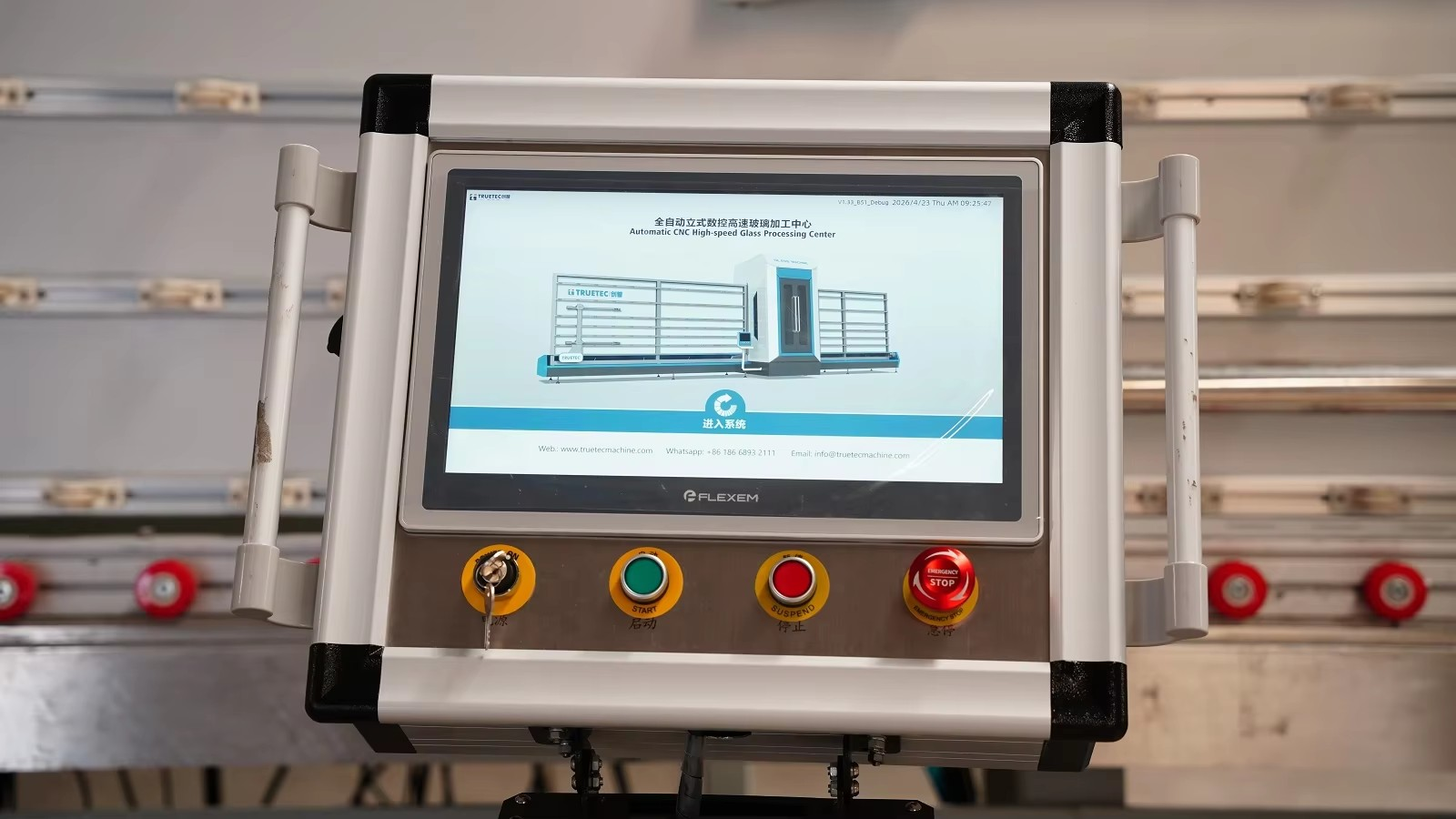

B. For end-users far from the manufacturer, especially overseas customers, remote control, maintenance and pattern import functions can be added based on end-user requirements. C. Without tool changes, the machine can process various holes on glass or rock slabs, special-shaped door clamps, lock holes and other special-shaped glass parts, and perform polishing, chamfering and other processes on processed edges and corners. D. The machine features extremely high production efficiency, about 30% higher than horizontal machines with tool changers. For example, processing 4 holes with a diameter of 20 mm and 2 hinge clamps on a 1.5-square-meter glass piece takes approximately 3.5 minutes under normal conditions.

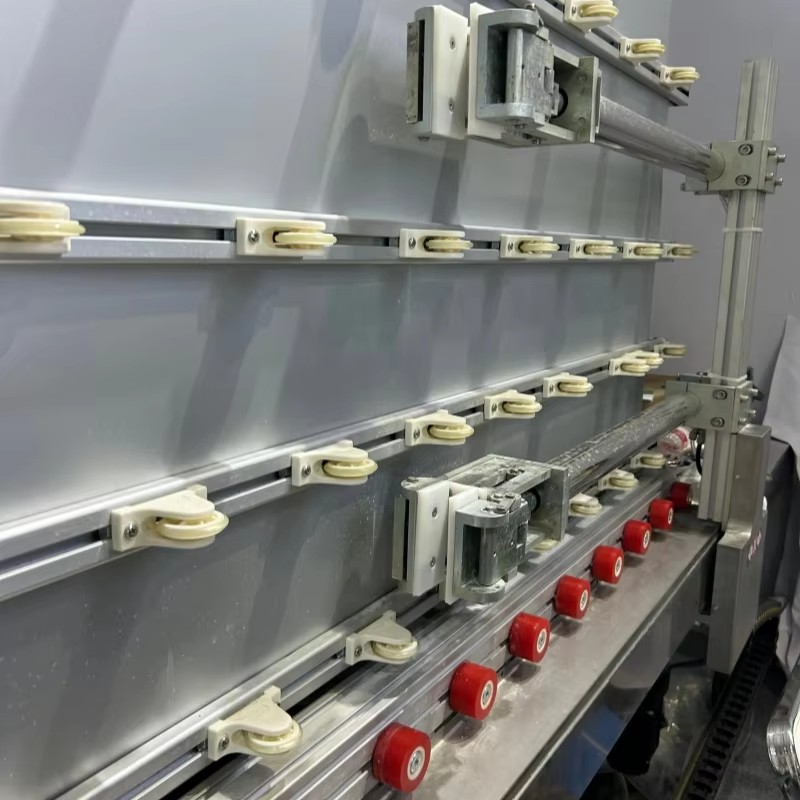

E. The machine is extremely simple to operate and easy to learn. Operators with only primary school education can master the basic operation procedures within 15 minutes, with low requirements for workers’ skills. F. The guide rails, bearings, sliding blocks, frame accuracy, pneumatic components and electrical components of the machine all adopt reinforced and oversized configurations, ensuring high stability and low failure rate. Under normal conditions, the machine requires no disassembly maintenance within 5 years. G. In addition, maintenance is very simple, and routine equipment repair and maintenance can be completed without professional technicians. H. Power consumption is about 10 kWh per hour, saving energy and reducing production costs. I. This machine can perform shape milling, drilling and edge grinding without replacing tool heads, and can also be equipped with cutting-edge tools (tools for machining centers).
A single tool can process a variety of different patterns, and drilling, milling and grinding functions can be realized during processing according to customer requirements, truly achieving multi-purpose use with one tool. The machine can also be connected in line with vertical glass washing machines and glass loading/unloading machines, greatly improving production efficiency. A.Equipped with 4-axis servo motors and computer control, the machine allows users to select patterns from the built-in gallery on the operation panel, or import patterns to the equipment operating system via USB flash drive (CAD format) or direct data cable connection to a computer.
B. For end-users far from the manufacturer, especially overseas customers, remote control, maintenance and pattern import functions can be added based on end-user requirements. C. Without tool changes, the machine can process various holes on glass or rock slabs, special-shaped door clamps, lock holes and other special-shaped glass parts, and perform polishing, chamfering and other processes on processed edges and corners. D. The machine features extremely high production efficiency, about 30% higher than horizontal machines with tool changers. For example, processing 4 holes with a diameter of 20 mm and 2 hinge clamps on a 1.5-square-meter glass piece takes approximately 3.5 minutes under normal conditions.
E. The machine is extremely simple to operate and easy to learn. Operators with only primary school education can master the basic operation procedures within 15 minutes, with low requirements for workers’ skills. F. The guide rails, bearings, sliding blocks, frame accuracy, pneumatic components and electrical components of the machine all adopt reinforced and oversized configurations, ensuring high stability and low failure rate. Under normal conditions, the machine requires no disassembly maintenance within 5 years. G. In addition, maintenance is very simple, and routine equipment repair and maintenance can be completed without professional technicians. H. Power consumption is about 10 kWh per hour, saving energy and reducing production costs. I. This machine can perform shape milling, drilling and edge grinding without replacing tool heads, and can also be equipped with cutting-edge tools (tools for machining centers).
No. | Required Technical Item | Parameter |
Model: TTPC1800-CNC-4 | ||
1 | Maximum Processing Glass Length | 1800*2500mm |
2 | Minimum Processing Glass Size | 300*500mm |
3 | Processing Glass Thickness | 4-19mm |
4 | Glass Chamfer Grinding Amount | 1-2mm |
5 | Minimum Drilling Diameter | 6mm |
6 | Reference Height | 830+30mm |
7 | Power | 16KW |
8 | Overall Machine Dimensions | 7400*2000*2800mm |
9 | Overall Machine Weight | Approx. 3500KG |
10 | Overall Machine Operation | No abnormal noise during operation |
Shandong Truetec Company is a manufacturer of glass processing machines, such as insulating glass.
